Introduction to Water Heater Element Testing: How To Test Water Heater Element
Water heater elements are crucial components within a water heating system. They are responsible for directly heating the water within the tank. These elements typically consist of a resistive heating coil, which converts electrical energy into heat. Proper functioning of these elements is vital for maintaining the efficiency and longevity of the entire system.
Regular testing of water heater elements is essential for preventing costly repairs and ensuring a consistent supply of hot water. Failure to conduct these tests can lead to unexpected breakdowns, potential safety hazards, and significant financial losses due to costly replacements and potential water damage. Early detection of element issues allows for timely repairs, minimizing disruption and maximizing the operational lifespan of the water heater.
Water Heater Element Types
Different types of water heater elements are designed for various applications and tank configurations. Understanding the differences is important for accurate testing procedures.
| Element Type | Description | Typical Applications |
|---|---|---|
| Immersion Element | These elements are submerged directly within the water tank, providing a direct heating source. | Common in most standard water heater tanks. |
| Cartridge Element | These elements are housed within a cartridge that is inserted into the water heater tank. | Often found in tankless or specific water heater models. |
| Electric Resistance Heating Element | These elements are the primary heating components in electric water heaters, converting electrical energy into heat. | Directly responsible for the water heating process. |
Importance of Testing
Regular testing of water heater elements is crucial for ensuring the safe and efficient operation of the system. Failure to test can lead to unexpected malfunctions, potentially resulting in damage to the tank, electrical shocks, or water leaks. The longer a faulty element operates, the greater the risk of these complications. For example, a faulty immersion element could lead to localized overheating, which may weaken the tank and ultimately result in costly repairs or even a complete replacement.
Potential Consequences of Failing to Test
Ignoring the need to test water heater elements can lead to various issues. These include premature element failure, tank damage, electrical hazards, and potential water damage. A damaged element can cause reduced efficiency, which increases energy consumption. Furthermore, a failing element can overheat, leading to a fire hazard.
Visual Inspection Techniques
A visual inspection is a crucial initial step in troubleshooting a water heater element. It allows for a quick assessment of the element’s physical condition without the need for extensive tools or procedures. This method can often identify obvious signs of damage or wear, saving time and resources in the diagnostic process.
This section will detail the steps for visually inspecting water heater elements, highlighting common signs of faults and providing safety precautions to prevent accidents. Understanding these techniques will help you determine if a more in-depth inspection or replacement is necessary.
Steps for Visual Inspection
A thorough visual inspection involves careful examination of the element’s physical characteristics. Inspect the element for any visible damage, such as cracks, breaks, corrosion, or discoloration. Pay close attention to the mounting points and connections to ensure they are secure and intact.
- Examine the element’s surface for any signs of cracking, breakage, or pitting. Note the location and extent of any damage.
- Inspect the element’s mounting points and connections. Ensure they are secure and not loose or corroded.
- Check for any signs of corrosion or discoloration. Look for rust, scale buildup, or other signs of chemical degradation.
- Observe the element’s terminals or wiring for any signs of damage or fraying. Assess the connection integrity to the element.
Common Signs of a Faulty Element
Identifying visual cues for a faulty element can significantly streamline the troubleshooting process. Several characteristics may indicate a problem.
- Cracks or Breaks: A crack or break in the heating element indicates a potential electrical short or failure, rendering it unusable. The crack may be a hairline fracture, or a larger, more obvious break. The severity of the break influences the element’s ability to function.
- Corrosion or Discoloration: Rust, pitting, or unusual discoloration on the heating element can be indicative of chemical reactions or exposure to harsh elements. This often points to an underlying problem with the water quality or material degradation.
- Loose Connections: Loose connections at the mounting points or terminals can result in poor electrical contact. This could lead to overheating, poor heating efficiency, or even a potential fire hazard.
- Warped or Deformed Shape: A warped or deformed element may indicate overheating or thermal stress, which could cause structural weakness and affect the element’s functionality.
Visual Inspection Methods Comparison
Different types of water heater elements may require slightly different inspection approaches. This table provides a comparison of methods for various element types.
| Element Type | Inspection Focus | Specific Considerations |
|---|---|---|
| Immersion Element | Visual inspection of the heating coil, terminals, and mounting points for cracks, corrosion, or loose connections. | Ensure the element is fully immersed in the water to avoid overheating and check for any signs of water leakage. |
| Electric Tank Element | Visual inspection of the heating coil, insulation, and mounting points for cracks, corrosion, or loose connections. | Inspect the tank for leaks and corrosion around the element to prevent damage. |
| Radiant Element | Visual inspection of the heating panel, insulation, and mounting points for cracks, corrosion, or loose connections. | Pay close attention to the element’s uniformity and distribution of heat, as well as the thermal insulation integrity. |
Safety Precautions During Visual Inspection
Safety is paramount during any water heater element inspection. Follow these precautions to prevent injuries and ensure a safe work environment.
- Turn off the power supply: Always disconnect the electrical power supply to the water heater before performing any inspection or maintenance. This prevents electrical shocks.
- Use appropriate safety gear: Safety glasses and gloves should be worn during the inspection to protect your eyes and hands from potential hazards.
- Avoid contact with hot surfaces: Water heater elements can become extremely hot, potentially causing burns. Handle with care and allow the element to cool down adequately before touching it.
- Inspect the water heater enclosure: Inspect the surrounding area for any potential leaks or moisture that could affect the safety of the inspection.
Importance of Safety Gear
Using appropriate safety gear during visual inspections is crucial for minimizing risks.
- Eye protection: Safety glasses or goggles prevent particles from entering the eyes, and are particularly important when inspecting for potential debris or corrosion flakes.
- Hand protection: Gloves protect hands from potential burns, sharp edges, or electrical hazards.
- Foot protection: Appropriate footwear is needed for working around potentially wet or slippery surfaces.

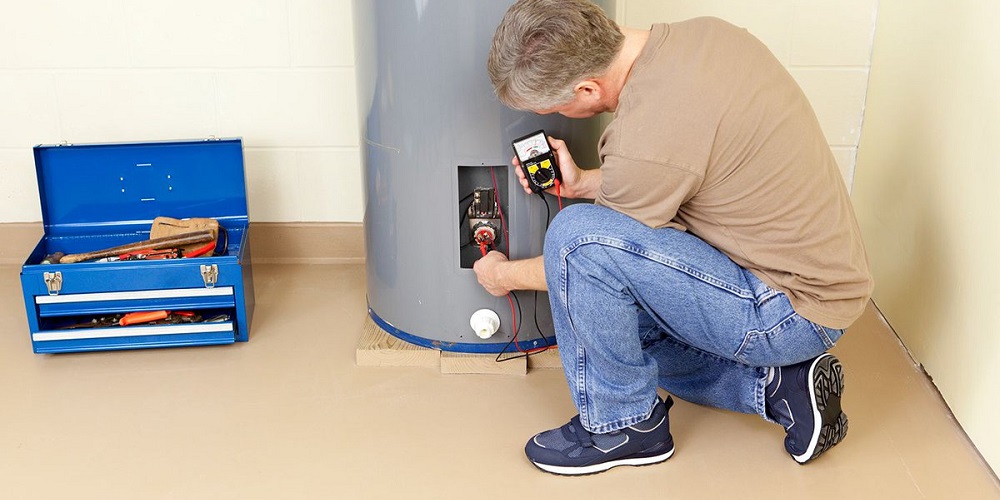

Electrical Testing Procedures
Electrical testing of water heater elements is a crucial step in diagnosing potential issues and ensuring safe operation. Incorrect procedures can lead to electrical shock hazards or further damage to the water heater. This section details the safe and effective methods for measuring the resistance of water heater elements.
Resistance Measurement Procedure
Proper resistance measurement ensures accurate identification of faulty elements. A digital multimeter, specifically designed for electrical measurements, is essential for this task. Ensure the multimeter is set to the appropriate resistance range for the element type being tested. Disconnect the element from the electrical circuit before any measurements are taken. With the element disconnected, carefully probe the leads of the multimeter to the terminals of the element. A reading on the multimeter display will indicate the resistance value. Record this value for future reference. Reconnect the element to the circuit only after verification of the readings.

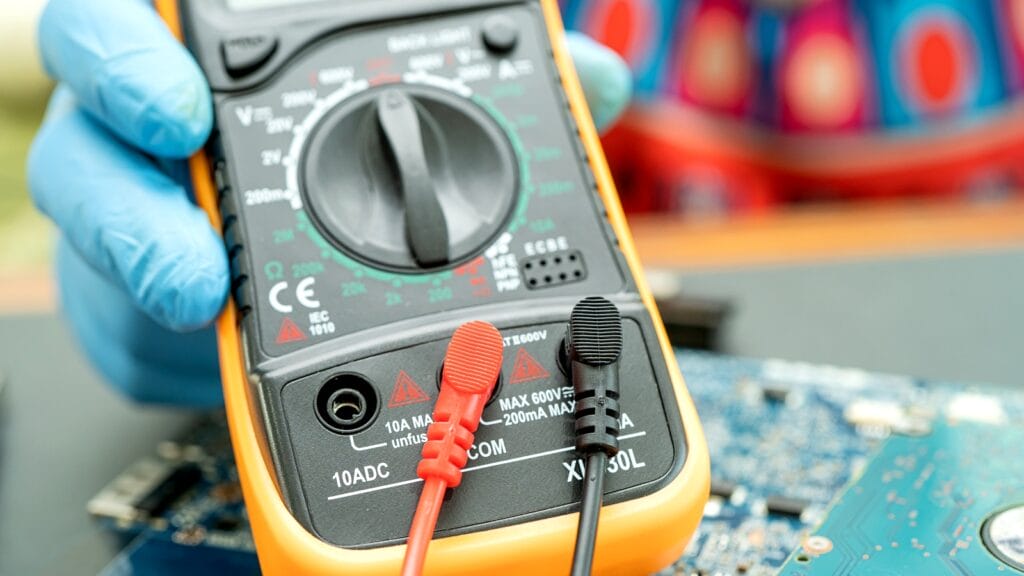

Tools Required for Electrical Testing
A complete set of tools is vital for safe and accurate electrical testing. A digital multimeter is indispensable for measuring resistance. Safety glasses, gloves, and a non-conductive work surface are critical for personal protection. The tools needed for testing should be in good working order and appropriate for the specific application. The tools should be checked for proper functioning before use.
Safe Handling of Electrical Tools
Handling electrical tools requires a high degree of caution to prevent electrical shock and injuries. Always disconnect the water heater from the power source before any electrical testing. Use insulated tools and work on a non-conductive surface. If working on a wet surface, take extra precautions. Always be mindful of the potential for electrical hazards. Ensure all tools are properly grounded and maintained to avoid any malfunction during use.
Expected Resistance Values
The expected resistance values for water heater elements vary based on their type and specifications. The table below provides a general guideline, but always refer to the manufacturer’s specifications for precise values.
| Element Type | Expected Resistance (Ohms) |
|---|---|
| 1500-watt element | 25-30 |
| 2000-watt element | 20-25 |
| 3000-watt element | 12-15 |
| High-efficiency element | Variable, check manufacturer’s specifications |
Note: Values are approximate and may vary based on specific element characteristics and manufacturing tolerances.
Safety Precautions, How to test water heater element
Working with electricity requires strict adherence to safety precautions. Always disconnect the water heater from the power source before any electrical work. Ensure proper insulation and grounding of all tools and equipment. Use safety glasses and gloves to protect yourself from electrical hazards and potential injuries. If you are unsure about any aspect of the testing procedure, consult a qualified electrician. Never attempt to test electrical components if you lack the necessary knowledge and experience.
Water Pressure and Flow Testing
Proper water pressure and flow are critical for optimal water heater element performance. Insufficient pressure can lead to reduced heating efficiency, while excessive pressure can strain the system, potentially causing leaks or damage. Accurately measuring these factors is essential for identifying potential issues and ensuring the longevity of your water heater.
Methods for Testing Water Pressure and Flow Rates
Accurate measurement of water pressure and flow is vital for diagnosing potential issues within a water heater system. Various methods are available, each with its strengths and limitations. Choosing the appropriate method depends on the specific needs and resources of the user.
- Pressure Gauge Method: A pressure gauge, commonly used in plumbing, directly measures the water pressure at the water heater’s inlet. This method provides a quick and straightforward way to assess pressure levels. Digital pressure gauges offer precise readings and are relatively easy to use.
- Flow Meter Method: A flow meter measures the rate at which water flows through the water heater’s inlet. Flow meters are available in various types, including turbine meters and ultrasonic meters. These instruments are crucial for understanding the water flow characteristics, which can significantly impact element performance.
- Combination Pressure and Flow Meter Method: Combining a pressure gauge and a flow meter allows for a comprehensive evaluation of both pressure and flow rate. This approach provides a more complete picture of the water system’s performance.
Normal Water Pressure and Flow Rates
Normal operating parameters for water pressure and flow vary based on the water heater’s specifications. Refer to the manufacturer’s specifications for the specific water heater model. Generally, pressure is measured in pounds per square inch (psi) and flow rate in gallons per minute (gpm).
| Water Heater Model | Normal Water Pressure (psi) | Normal Water Flow Rate (gpm) |
|---|---|---|
| Standard 40-gallon tank water heater | 40-80 psi | 4-8 gpm |
| High-efficiency 50-gallon tank water heater | 40-80 psi | 5-10 gpm |
| Tankless water heater (example) | Variable, typically higher than tank-style models | Variable, depending on the model’s specifications and demand |
Normal pressure ranges are a general guideline, and specific values can vary based on local water supply conditions. It is always best to consult the manufacturer’s instructions for specific recommendations.
Step-by-Step Procedure for Checking Water Pressure and Flow
Following a standardized procedure ensures consistent results and reduces errors during the inspection process.
- Shut off the water supply to the water heater: This crucial step prevents water damage and ensures the safety of the user during the inspection.
- Connect the pressure gauge to the water heater’s inlet: Verify that the gauge is correctly connected and the appropriate unit is used for the intended measurement.
- Turn the water supply back on and monitor the pressure reading: Observe the pressure gauge for a steady reading to ensure accurate measurements.
- Install the flow meter at the inlet and monitor the flow rate: Follow the manufacturer’s instructions for installing the flow meter accurately.
- Record the readings: Document the pressure and flow readings for later analysis.
- Compare the recorded values with the manufacturer’s specifications: Identify any discrepancies or potential issues.
Impact of Water Pressure and Flow on Element Performance
Water pressure and flow directly affect the element’s heating efficiency. Sufficient pressure and flow are necessary for adequate water circulation and heat transfer. Insufficient pressure may lead to reduced heating, while excessive pressure can strain the system and decrease efficiency. A proper flow rate is vital to ensure that water flows smoothly through the element, enhancing the heat transfer process. A proper flow rate also helps prevent element overheating.
Comparison of Different Methods for Measuring Water Pressure
Different methods offer varying degrees of accuracy and convenience.
- Analog gauges provide a visual representation of pressure but may not offer the same precision as digital gauges.
- Digital gauges offer more precise readings, often with digital displays and potentially with additional features like data logging capabilities.
- Electronic flow meters provide accurate flow rate readings, offering the ability to measure the volume of water passing through a specific point.
Troubleshooting Common Issues
Water heater elements, like any electrical appliance, can experience problems. Understanding common issues and their troubleshooting steps is crucial for maintaining optimal water heating performance and preventing costly repairs. This section provides a comprehensive guide to diagnosing and resolving common water heater element problems.
Identifying the specific cause of a malfunctioning element is often the key to effective troubleshooting. Careful observation and systematic testing, combined with an understanding of potential causes, will help pinpoint the root of the issue and guide you towards the appropriate repair or replacement steps.
Common Water Heater Element Problems
A variety of issues can lead to problems with your water heater element. These include issues with the element’s electrical connection, its heating capability, and its interaction with the water pressure and flow within the tank. A comprehensive understanding of these potential problems is essential for effective troubleshooting.
Electrical Connection Problems
Faulty electrical connections are a frequent source of water heater element problems. These issues can range from loose wiring to damaged connectors. These problems may lead to insufficient heating, or potentially even a safety hazard.
- Loose Connections: Loose wires or terminals can lead to intermittent heating or complete failure. Visually inspect all connections for tightness. Use appropriate tools to tighten any loose connections, ensuring a secure grip without excessive force. If the connections are significantly corroded, consider replacing the affected parts.
- Damaged Connectors: Damaged or worn connectors can impede the flow of electricity to the element. Examine the connectors for signs of damage, such as cracks, discoloration, or melting. If any damage is evident, replace the connectors.
- Grounding Issues: A faulty ground connection can lead to a variety of problems, including improper operation and safety concerns. Ensure that the ground connection is intact and properly connected to the appropriate grounding point in the electrical system.
Heating Capacity Problems
A water heater element that fails to heat water effectively can indicate various issues. These problems are often related to the element’s resistance or physical condition.
- Low Heating Capacity: If the element is not producing enough heat, it may be due to a significant build-up of mineral deposits (scale) on the heating surface. This accumulation can impede heat transfer, reducing the element’s effectiveness. Regular descaling can help prevent this issue.
- Damaged Heating Element: A damaged heating element will not function correctly. Inspect the element for physical damage such as cracks, warping, or discoloration. If damage is present, the element must be replaced.
Water Pressure and Flow Issues
The pressure and flow of water through the tank can influence the element’s performance.
- Insufficient Water Pressure: Insufficient water pressure can prevent the element from heating the water adequately. Ensure that the water supply to the tank is functioning correctly.
- Low Water Flow: If the water flow is too low, it can result in inefficient heating. Check for any blockages or restrictions in the water supply lines.
Troubleshooting Table
| Problem | Possible Cause | Troubleshooting Steps |
|---|---|---|
| Element not heating | Loose connections, damaged element, insufficient water pressure, scale buildup | Check connections, visually inspect the element, verify water pressure, consider descaling |
| Element intermittently heating | Loose connections, faulty switch | Tighten connections, check the switch for proper operation |
| Element produces excessive heat | Overheating, potential electrical fault | Check for any overloads, ensure proper wiring, contact a professional if needed |
Causes of Element Failure
Element failure can result from various factors, including age, overuse, and mineral buildup. Over time, elements can deteriorate due to continuous operation. Mineral buildup in the tank can reduce the element’s efficiency, increasing the risk of failure. High water temperatures can also contribute to premature element failure.
Preventing Future Element Failures
Regular maintenance and proactive measures can help prevent future element failures. Descaling the tank periodically removes mineral buildup, improving the element’s performance. Proper water pressure and flow are essential for optimal element function. Following the manufacturer’s guidelines for the water heater’s operation and maintenance is crucial.
Replacing a Faulty Water Heater Element
Replacing a faulty water heater element is a relatively straightforward task, but it requires careful attention to safety precautions and proper installation techniques. Improper replacement can lead to electrical hazards or ineffective heating, potentially damaging your water heater and compromising safety. This section provides a comprehensive guide to replacing a faulty element, covering essential steps, tools, and safety measures.
Tools and Materials Needed
Proper preparation is crucial for a successful element replacement. Gathering the necessary tools and materials beforehand minimizes disruptions and ensures a smooth process. This includes:
- Screwdrivers (Phillips and flathead)
- Adjustable wrench
- Voltage tester
- Wire strippers
- New water heater element (matched to the existing one)
- Gloves and safety glasses
- Water heater drain pan
- A bucket or container to catch water
- Electrical tape
Step-by-Step Replacement Procedure
The following steps detail the process for replacing a faulty water heater element. Follow these instructions carefully for a safe and effective replacement.
- Turn off the power supply to the water heater at the circuit breaker. This is a critical safety step to prevent electrical shocks.
- Drain the water heater. This prevents water damage and allows safe access to the element. Position a drain pan under the water heater and open the drain valve. Ensure the water is completely drained.

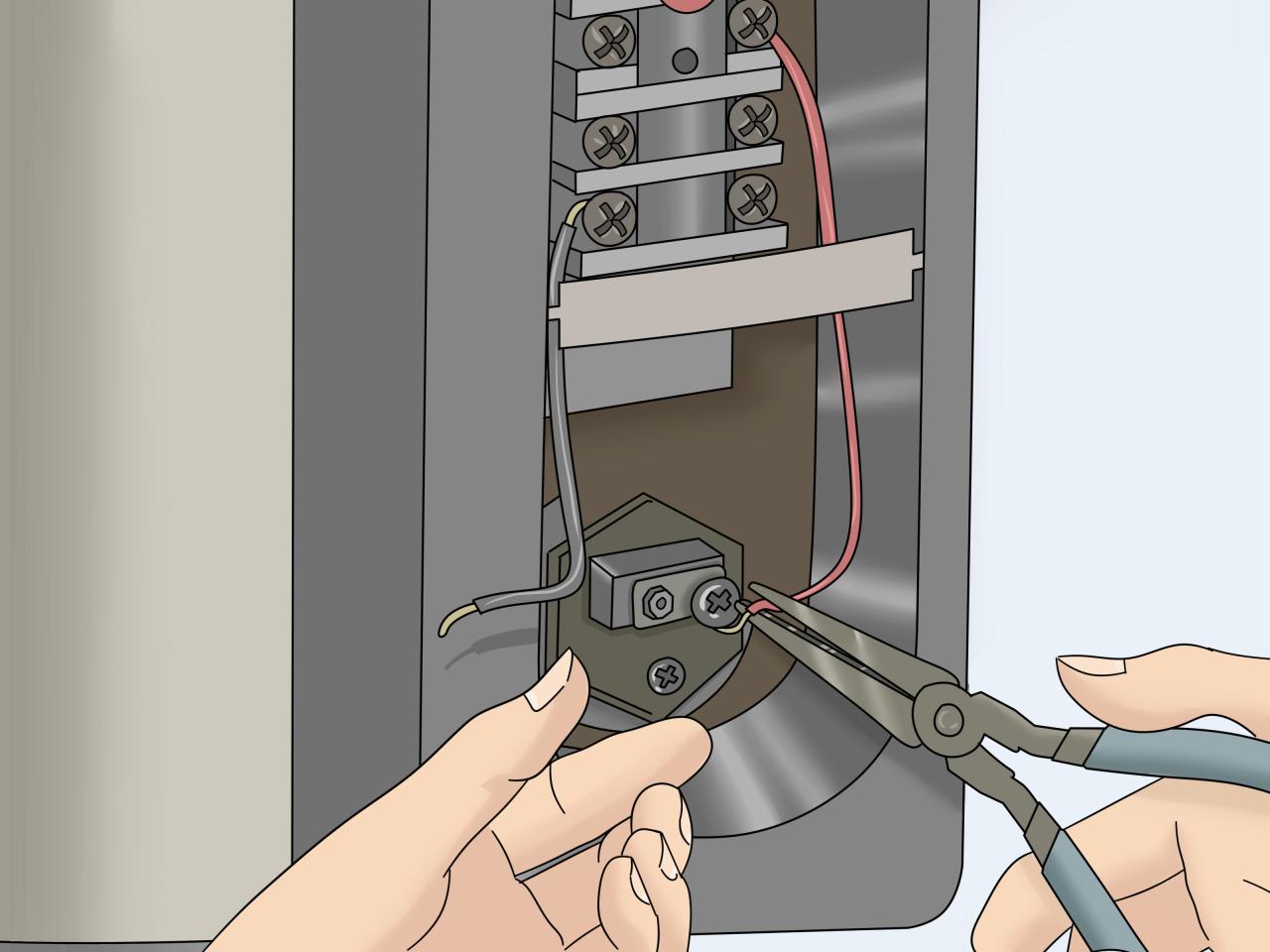

- Disconnect the old element. Use the appropriate tools to disconnect the wires from the old element. Carefully note the wire connections to ensure correct reconnection.
- Remove the old element. Using the appropriate tools, carefully remove the old element from the water heater tank. Ensure the old element is not damaged during removal.
- Install the new element. Carefully position the new element in the water heater tank. Ensure that the element is properly seated and aligned.
- Reconnect the wires to the new element, ensuring the correct connections are made and secure.
- Check the new element with a voltage tester to confirm it’s connected correctly and operational. This step is crucial to ensure the new element is functioning properly.
- Fill the water heater. Slowly add water to the water heater tank. Check for any leaks around the element or other connections.
- Turn on the power supply to the water heater at the circuit breaker. This step completes the installation process.
- Test the water heater by running hot water to ensure the new element is functioning as expected.
Importance of Proper Element Sizing
Using an element that is the correct size is vital for efficient heating and to prevent damage to the water heater. Using an element that is too large or too small can lead to overheating or insufficient heating. The correct element will maintain optimal water temperature and extend the life of the water heater.
Safety Precautions, How to test water heater element
Safety is paramount during any water heater maintenance. Adhering to these precautions minimizes the risk of injury or damage:
- Always disconnect the power supply to the water heater at the circuit breaker before performing any work.
- Wear appropriate safety gear, such as gloves and safety glasses.
- Be extremely careful when working with electricity and water.
- Ensure proper ventilation when working in enclosed spaces.
- If you are unsure about any step, consult a qualified technician.
Preventing Water Heater Element Failure
Proper maintenance of your water heater is crucial for its longevity and efficient operation. Neglecting regular upkeep can lead to premature element failure, resulting in costly repairs and potential safety hazards. Implementing preventive measures can significantly extend the lifespan of your water heater and reduce the likelihood of these issues.
Understanding the common causes of element failure and taking proactive steps to mitigate them is key to avoiding costly replacements. This section Artikels preventative maintenance strategies, emphasizing the importance of water quality and routine inspections.
Preventive Maintenance Measures
Regular maintenance is essential for the long-term health of your water heater. A well-maintained water heater functions efficiently, uses less energy, and is less likely to experience breakdowns. Performing routine checks and addressing potential problems early can save you money and frustration in the long run.
- Regular Flushing: Regularly flushing your water heater helps remove sediment buildup, which can insulate the heating element and reduce its efficiency. This process can significantly improve the lifespan of your element.
- Proper Water Quality: Water quality plays a significant role in the longevity of your water heater. Hard water, containing high mineral content, can contribute to sediment buildup and scale formation. This buildup hinders the element’s ability to transfer heat effectively, leading to premature failure.
- Proper Insulation: Adequate insulation around the water heater helps maintain optimal operating temperatures, preventing excessive heat loss and potential element damage.
- Checking for Leaks: Regularly inspect the water heater for leaks, as these can lead to corrosion and damage to the heating element.
Importance of Regular Water Heater Maintenance
Regular maintenance goes beyond just preventing element failure. It also ensures the safe and efficient operation of your water heater. This proactive approach can help you avoid costly repairs and potential safety hazards.
- Early Detection of Issues: Regular checks allow for the early identification of potential problems, such as leaks, sediment buildup, or faulty components. Addressing these issues promptly can prevent more significant damage and extend the life of your water heater.
- Energy Efficiency: A well-maintained water heater functions more efficiently, using less energy and lowering your utility bills.
- Safety: Regular maintenance can identify and address potential safety hazards, such as gas leaks or electrical issues.
Routine Water Heater Inspections Checklist
A checklist helps ensure you don’t overlook any crucial aspects of your water heater maintenance. This structured approach provides a comprehensive guide for a thorough inspection.
- Visually inspect the water heater for any signs of leaks, corrosion, or damage.
- Check the water pressure gauge to ensure it’s within the manufacturer’s specifications.
- Inspect the heating element for signs of corrosion, damage, or sediment buildup.
- Ensure proper ventilation is maintained.
- Check the thermostat settings to ensure they are appropriate for your needs.
- Examine the surrounding area for signs of leaks or water damage.
- Inspect the gas lines (if applicable) for leaks.
Importance of Proper Water Quality
Hard water, containing high mineral content, can significantly shorten the lifespan of your water heater element.
Hard water leads to sediment buildup, which reduces heat transfer efficiency and causes premature element failure.
Proper water treatment, such as water softeners, can help mitigate the effects of hard water and improve the longevity of your water heater.
Common Causes of Premature Element Failure
Understanding the reasons behind premature element failure allows for proactive measures to prevent such issues.
| Cause | Description |
|---|---|
| Sediment Buildup | Mineral deposits (scale) from hard water accumulate on the heating element, reducing its heat transfer capacity. |
| Corrosion | Exposure to oxygen and other corrosive substances in the water can lead to rust and pitting on the element. |
| Overheating | Excessive heat or improper thermostat settings can lead to element damage. |
| Electrical Issues | Problems with the electrical connections or components can cause the element to overheat or fail. |
| Physical Damage | Physical impacts or improper installation can cause structural damage to the element, leading to leaks or failure. |
Illustrations and Visual Aids
Visual aids are crucial for effectively understanding and performing water heater element testing. Illustrations and diagrams provide a clear picture of the various components, types, and potential faults, aiding in accurate identification and resolution of issues. They serve as a practical guide for both novice and experienced technicians, promoting safe and efficient repairs.
Water Heater Element Types
Different water heater models utilize various element types, each with unique characteristics and applications. Understanding these types is essential for selecting the correct replacement element.
- Immersion-type elements are the most common type. These elements are directly immersed in the water. A typical immersion element consists of a heating coil or a heating rod, typically made of stainless steel or nickel-chromium alloy, encased in a ceramic or metal housing. This housing protects the heating element from physical damage and corrosion. Diagram: Imagine a cylindrical metal casing with a coiled wire inside, submerged in a tank of water.
- Internal elements are designed for specific water heater models, often featuring integrated safety mechanisms like thermal cut-offs. These elements are more complex, typically found in tankless water heaters or specialized units. Diagram: A more intricate design, often with visible safety components such as a fuse or thermostat embedded in the casing. The heating element coil might be less visible than in immersion type.
- Exterior elements are located on the outside of the water heater tank. They are often used in certain types of tankless or on-demand water heaters. Diagram: Imagine a heating element positioned on the exterior of a water heater tank, with connections to the plumbing system and a control panel.
Water Heater Element Components
A detailed understanding of the various components of a water heater element is critical for diagnosing and troubleshooting problems.
- Heating Coil/Rod: This is the core component responsible for generating heat. It is typically constructed from a high-resistance alloy to efficiently convert electrical energy into heat. Diagram: A coiled or straight metal wire with clearly visible terminals.
- Insulation: Surrounding the heating coil/rod is an insulator to prevent short circuits and maintain proper thermal conductivity. Diagram: A layer of ceramic or insulating material encasing the heating coil.
- Terminal Connections: These connections are critical for safely and efficiently delivering electrical current to the heating element. Diagram: Metal terminals, typically copper, that securely connect the element to the electrical wiring.
- Housing: The housing encloses the entire element, protecting it from damage and ensuring safe operation. Diagram: A cylindrical metal or ceramic casing that encloses the entire heating element.
Testing Tools
Accurate water heater element testing relies on appropriate tools.
| Tool | Description | Diagram |
|---|---|---|
| Multimeter | A multimeter measures voltage, current, and resistance, essential for verifying the electrical continuity of the element. | A hand-held device with various input terminals. |
| Voltage Tester | A voltage tester quickly checks for voltage presence without needing to connect to the circuit. | A simple device with a test probe that lights up when voltage is detected. |
| Insulation Tester | An insulation tester is used to verify the insulation integrity of the element. | A device that uses a high-voltage measurement to assess the resistance between the wires. |
Common Element Faults (Visuals)
Recognizing common element faults can significantly reduce repair time.
- Damaged/Broken Heating Coil: A visual inspection will reveal a broken, cracked, or severely corroded heating coil. Diagram: A picture showing a visibly cracked or broken heating coil within the element housing.
- Exposed Wiring: Exposed wires indicate a potential short circuit hazard. Diagram: A picture showing frayed or exposed wires near the element terminals.
- Corrosion: Excessive corrosion on the element housing or heating coil indicates deterioration. Diagram: A picture of a heavily corroded element housing, showing rust or pitting on the metal surfaces.
Proper Water Heater Element Installation
Correct installation prevents future issues.
- Secure Connections: Ensuring secure connections to the electrical system is paramount. Diagram: A picture showing proper wire connections to the element terminals, with clearly visible screws or clamps.
- Proper Placement: Correct positioning within the water heater tank is crucial. Diagram: A picture of the element correctly placed in the tank, avoiding obstructions or misalignment.
- Insulation Integrity: Checking for any damage or gaps in the insulation is vital. Diagram: A picture showcasing a properly installed element with no gaps in the insulation material.
FAQ
How to test water heater element – What tools are needed for electrical testing?
A multimeter is the primary tool for measuring resistance. Safety glasses, gloves, and a non-conductive work surface are also crucial.
What are some common causes of premature element failure?
Hard water buildup, insufficient water pressure, and over-heating are common causes of premature failure. Improper installation or inadequate maintenance can also contribute.
How do I know if my water heater element is faulty, just by visual inspection?
Look for signs like discoloration, cracks, or corrosion on the element. If the element is loose or doesn’t appear secure in its housing, it may be faulty.
What are normal water pressure and flow rates for different water heater models?
Consult your water heater’s manual for specific recommendations. General guidelines can vary based on the model and local water conditions.
